Linear guides from Bosch Rexroth

Precise, dynamic and resilient – we offer the solution to your challenge.

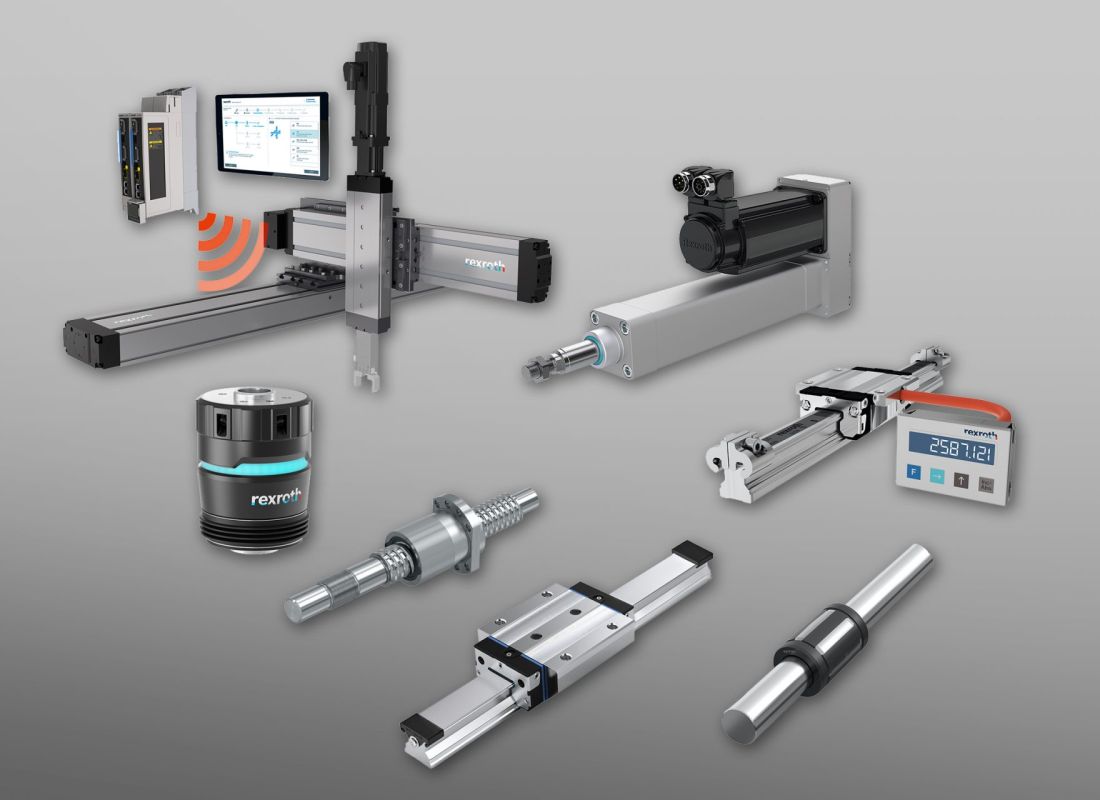

Ready-to-install, scalable, customised – linear systems with linear guides from the market leader for positioning and handling tasks as well as guiding and drive tasks. The Rexroth linear guide is a key element of these systems and stands for precision and reliability.

All components are perfectly matched to each other. In addition, the modular system offers all add-on parts, cable systems, motors and drive controllers to provide you with a solution from a single source. The ball rail guides from Bosch Rexroth have been specially developed for machine and tool construction and guarantee an optimum combination of precision, durability and load capacity.

Our linear guides ensure precise motion sequences in a wide range of applications – from industrial automation to medical technology.

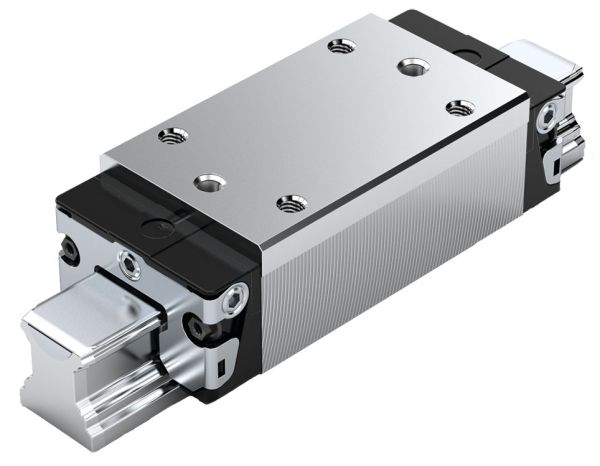

The ball rail guides from Bosch Rexroth have been specially developed for machine and tool construction.

Let the performance and long service life of the linear technology convince you. Whether special corrosion protection, an efficient minimum quantity lubrication system or the freedom from wear typical of rolling bearings – Bosch Rexroth systems, especially the Rexroth linear guideway, guarantee high operational reliability and constant precision.

As your local Bosch Rexroth Certified Excellence Partner, we support you in developing a customized solution and implementing it together with you. Translated with DeepL.com (free version)

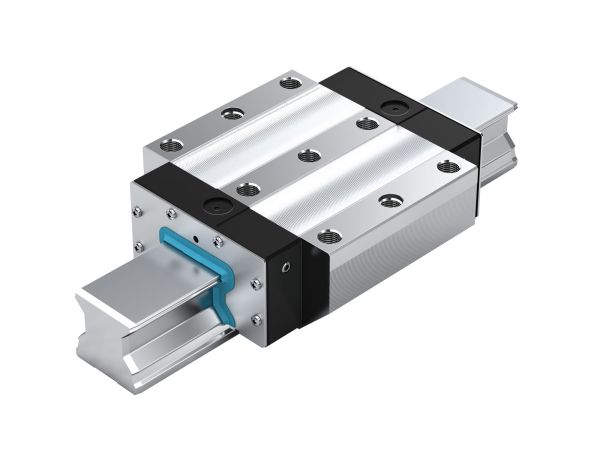

Roller rail guides for maximum precision and rigidity.

The Bosch Rexroth product range offers compact, roller-bearing linear guides in various accuracy classes for carriages and rails with extremely high rigidity and load carrying capacity. Discover the advantages of roller bearing guidance systems, which contribute significantly to energy efficiency and achieve up to 90 % better efficiency compared to sliding guides.

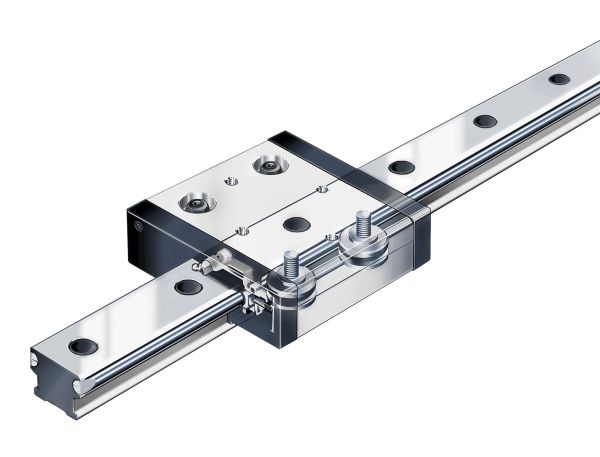

Bosch Rexroth has developed the track roller guidance systems especially for handling and automation technology. They are characterized by a compact design, a very low weight as well as a low friction and at the same time a low-noise operation.

The greatest advantage is the dynamics, as the smooth running of the roller carriages allows extremely high speeds.

The challenge of automation in, for example, the medical sector, automation technology and the electrical industry is to link processes in the smallest possible installation space.

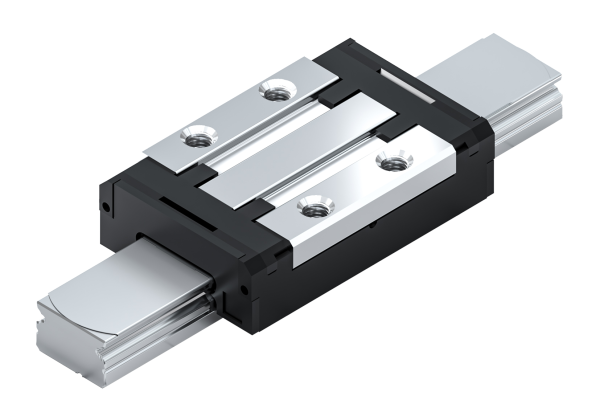

Ball-bearing linear guides with an extremely small size are required, which must nevertheless guarantee a high load capacity. Bosch Rexroth products offer outstanding performance in these sizes. Equal load ratings for the guide units in all four main load directions ensure that this system meets special requirements in these production segments.

    • Advantages

    High precision

    Thanks to the most advanced manufacturing technologies and exact alignment of the components, the linear guides guarantee maximum accuracy and repeatability.

    Long service life

    The robust design and freedom from wear typical of rolling bearings ensure minimum maintenance costs and maximum operational reliability.

    Energy efficiency

    Roller bearing-guided linear systems with high-quality linear guides offer up to 90 % better efficiency than conventional sliding guides and therefore contribute to sustainability.

    Flexibility and modularity

    The linear systems are available in various accuracy classes, sizes and configurations to provide optimum support for a wide range of applications.

    High load capacity

    The systems offer equally high load ratings in all four main load directions and are therefore ideally suited for demanding applications.
    • Areas of application:
    Bosch Rexroth linear guides are used in various branches of industry
    • Mechanical engineering & machine tool industry:
      Precise motions and high load capacity for maximum productivity.
    • Automation technology
      Efficient and dynamic processes in production lines and robot systems.
    • Medical technology
      Precise guides for diagnostic and treatment devices in the smallest of spaces.
    • Semiconductor and electronics industry
      High-precision motion systems for sensitive manufacturing processes.
    • Packaging and printing industry
      Fast and repeatable positioning for high throughput rates.
    • Quality you can rely on

    Bosch Rexroth stands for the highest quality and innovative technologies. The linear guides are designed for maximum load capacity and durability. Special coatings such as corrosion protection or special lubrication solutions ensure optimum performance even in demanding environments. The extremely high stiffness of the carriages and guides enables precise and reliable guidance – even under the highest loads and with demanding dynamic requirements.

    As your local Bosch Rexroth Certified Excellence Partner, we support you in developing and implementing a solution customized to your individual requirements. Benefit from the leading technology in the field of linear technology – for maximum efficiency and performance in your application.

    Contact us – we will be pleased to provide you with professional expertise!
