Tubular framing systems

Discover new dimensions with the tubular framing system from Bosch Rexroth.

The modular system consists of 19 standard components and was designed according to the poka-yoke principle to guarantee fast and error-free assembly. Flexibility and expandability are the advantages of the tubular framing system and allow subsequent improvements and adjustments to the fixtures and assembly lines.

Numerous individual solutions can be planned and assembled quickly and cost-effectively. A few standard components are used to create specific racks, material carts, workstations or other racks tailored to your needs.

Various customised solutions can be planned and assembled quickly and cost-effectively. With just a few standard components, you can create specific shelving, material trolleys, workstations or other racks to suit your needs.

Advantages

Areas of application

Quality

  • Advantages

High flexibility

thanks to the modular design and high versatility, constructions can be extended or customised at any time. Extended application possibilities thanks to the combination with the Bosch Rexroth aluminium profile construction kit.

Simple assembly

The connecting elements and the poka-yoke principle enable quick and error-free installation.

Ergonomic design

The systems can be customised to different working heights and requirements to create ergonomic workstations.

Lightweight design

The 30% lower weight of the round tubes compared to steel makes handling and assembly easier, while still ensuring a robust structure and 10 times the dynamic load capacity.

Cost efficiency

The modular system and new connector types allow customised solutions to be implemented without high costs.
  • Areas of application
The tubular framing system from Bosch Rexroth is used in numerous industries and applications, including
  • Workstation systems for manufacturing and assembly
  • Flexible shelving systems for storage and logistics solutions

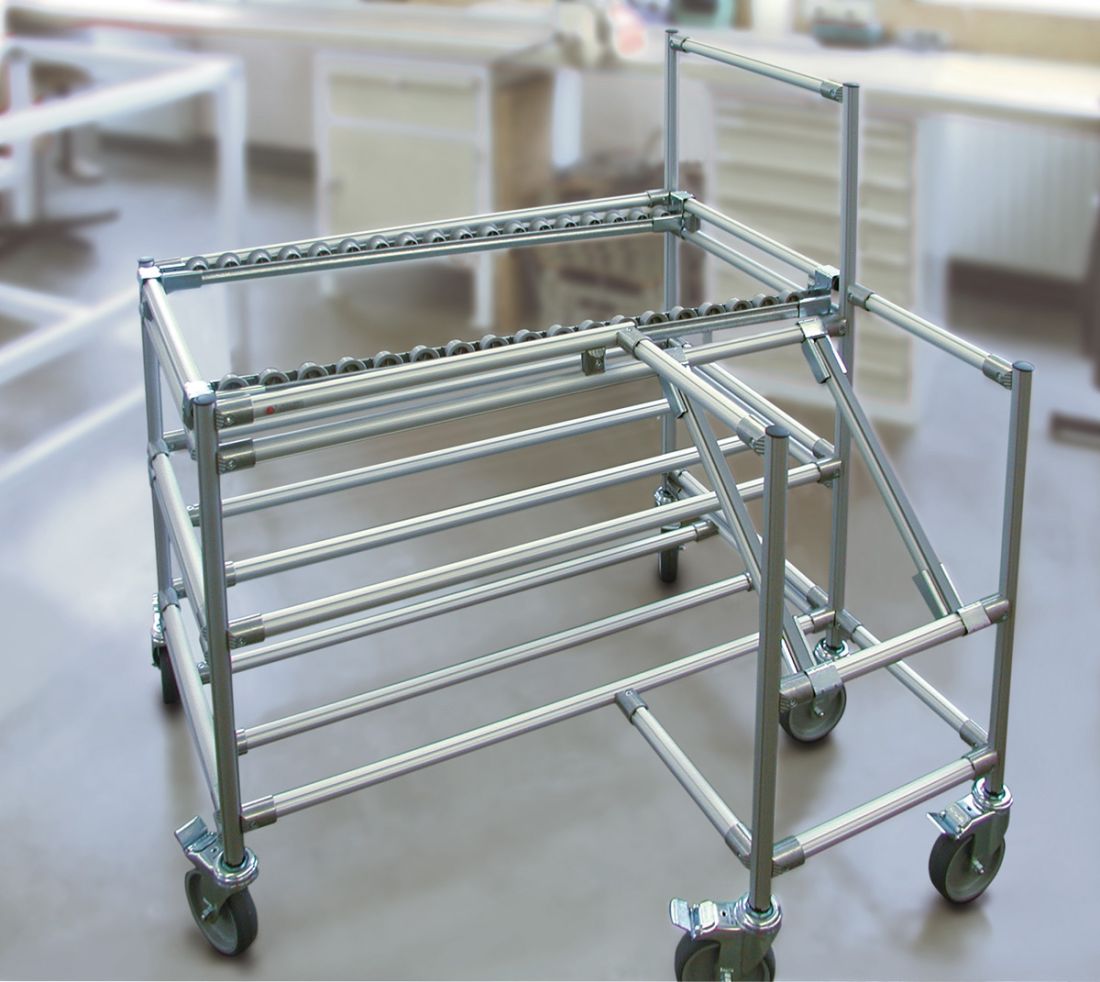

  • Material flow solutions such as transport trolleys and storage trolleys
  • Customised separation and protection devices
  • Laboratory equipment and mobile racks
  • Quality

The tubular framing systems from Bosch Rexroth are made from high-quality materials and guarantee a long product life and high stability. The precise manufacturing tolerances and robust connecting elements ensure reliable designs that can resist high loads. The surface treatment protects the tubes against corrosion and mechanical influences, making them ideal for long-term industrial use.

The tubular framing systems from Bosch Rexroth provides you with a flexible, stable and high-quality solution for a wide range of applications. Discover the possibilities and optimise your work processes with this innovative modular system.
